Description
SUMMARY

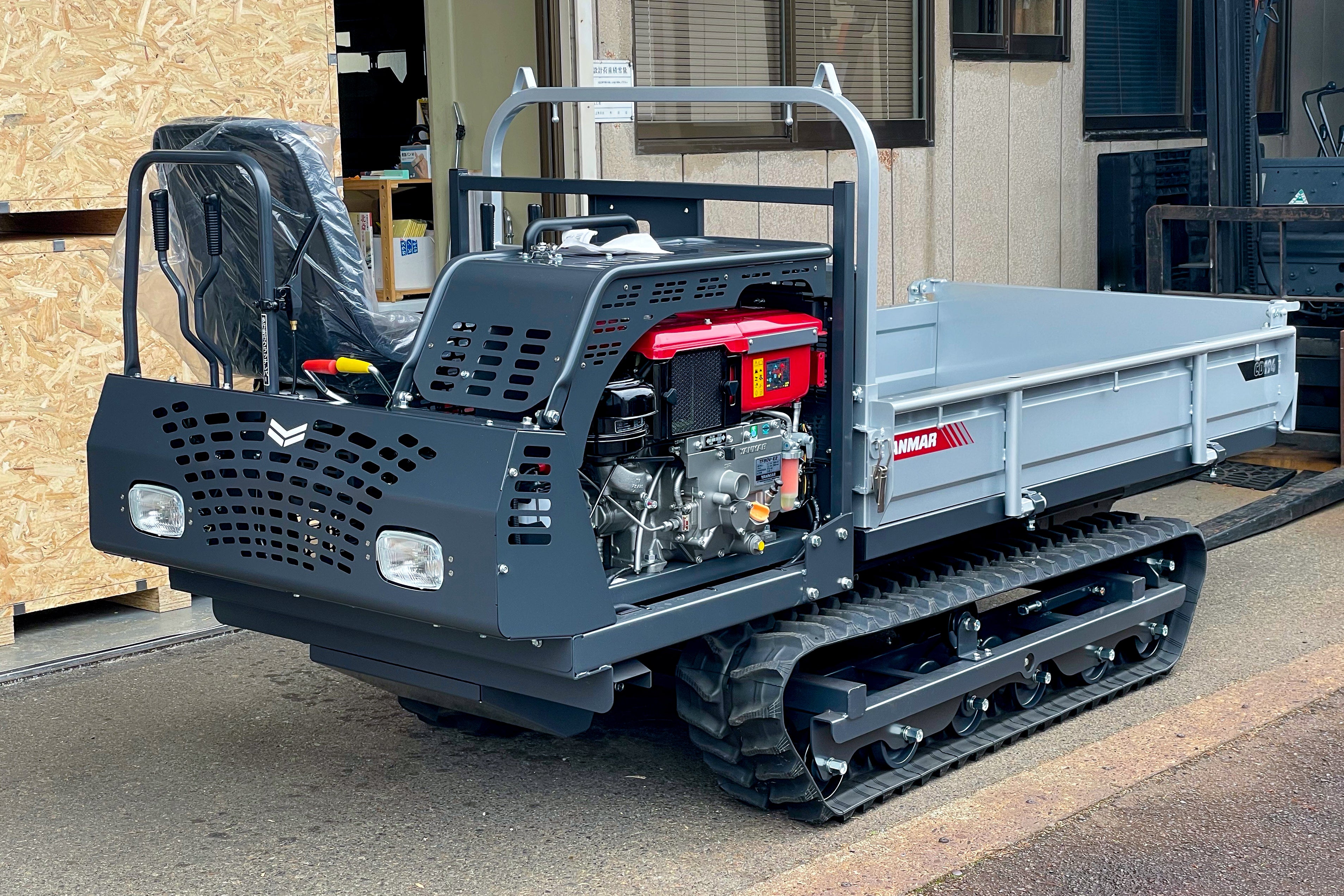

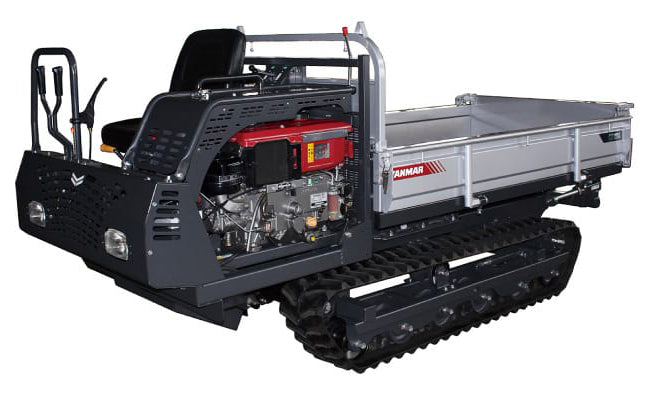

It is a multi-purpose truck for professionals that can speedily transport heavy loads such as crops, containers, heavy loads, soil, sand and compost.
Work efficiency is largely improved by loading 1200kg.
FEATURES
Main gear lever
By changing the shape of the shift guide from I-type to H-type, the direction of driving has become clearer, making work easier.
Forward/backward 4-speed transmission
The driver's seat and the control lever can be set in the opposite direction, allowing reverse operation without turning back.
It is especially effective on narrow roads and swamps where turning is difficult.
Pedestrian driving is also possible.
Safety improvement mechanism
Comes with a walking-only clutch that stops when you release your hand.
Crawler tread & ground length
The fuselage balance is improved by changing the tread and ground contact length. You can work more stably.
Equalizer wheel
An equalizer that reduces shock is used to ensure a comfortable ride over bumps and on rough terrain.
Wide size cargo bed
Changed the side plate fixation to snap lock fixation. Easy to open and close the side plate.
Wide size with a cargo bed length of 1855 mm.
SPECIFICATIONS
| Dimensions | Length (mm) | 3000 | |
|---|---|---|---|
| Width (mm) | 1160 | ||
| Height (mm) | 1460 | ||
| Weight (kg) | 855 | ||
| Engine | Model name | TF90V-E2 | |
| Type | Horizontal water-cooled 4-cycle diesel engine | ||
| Total displacement (L {cc}) | 0.493 {493} | ||
| Output/rotational speed (kW {PS}/rpm) | 6.3 {8.6}/2600 | ||
| Maximum output (kW {PS}) | 7.0 {9.5} | ||
| Fuel used | Diesel light oil | ||
| Fuel tank capacity (L) | 10.5 | ||
| Starting method | Cell starter type | ||
| Platform | Loading platform size | Length (mm) | 1855 |
| Width (mm) | 1040 | ||
| Side hatch height (mm) | 250 | ||
| Cargo floor ground clearance (mm) | 560 | ||
| Platform structure | Hydraulic dump | ||
| Dump angle (degrees) | 46 | ||
| Maximum working capacity (kg) | 1200 | ||
| Driving | Crawler width (mm) | 250 | |
| Crawler outer width (mm) | 1140 | ||
| Ground length (mm) | 1360 | ||
| Minimum ground clearance (mm) | 170 | ||
| Gear shift system | gear selection | ||
| Number of gears (steps) | 4 forward, 4 backward | ||
| Speed (at rated engine speed) |
Forward (km/h) | 1.4 to 7.0 | |
| Reverse (km/h) | 1.3 to 7.1 | ||
| Main clutch type | Belt tension | ||
| Brake type | Internal expansion | ||
| Steering method | Wet disc brake | ||
