SUMMARY

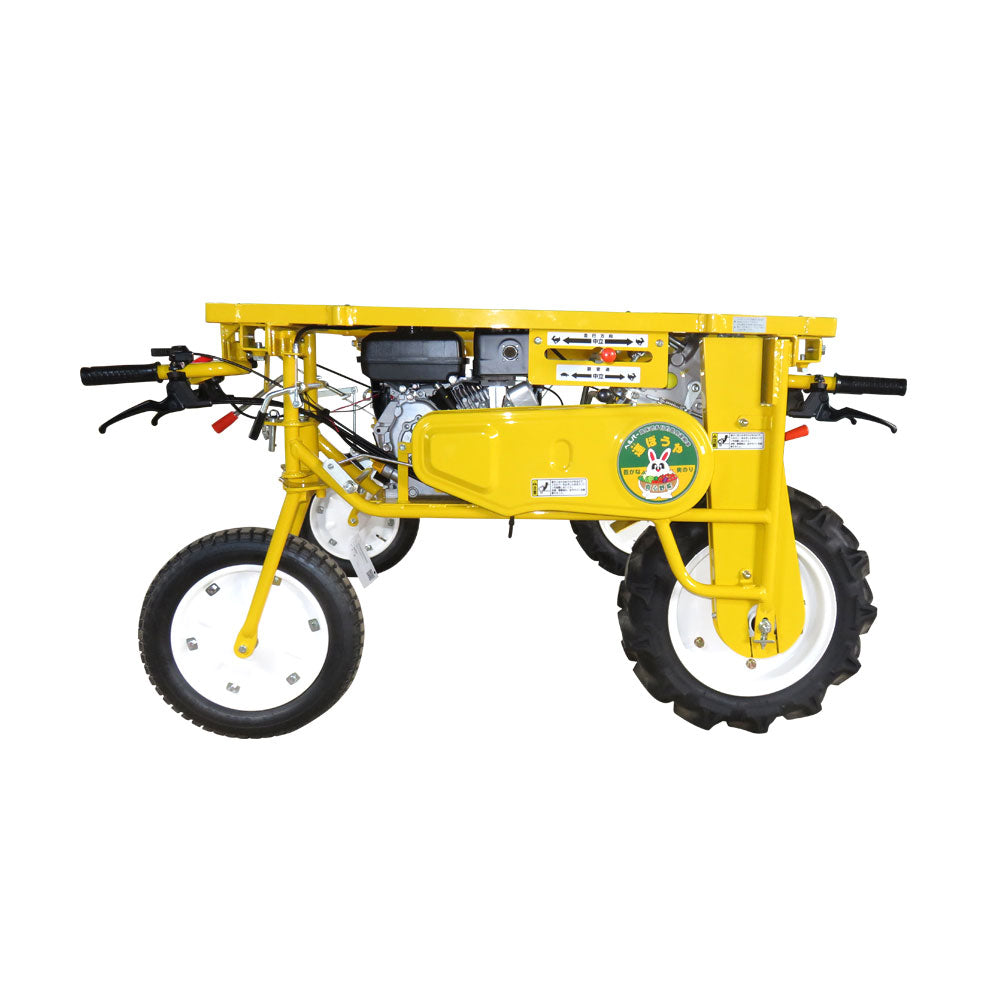

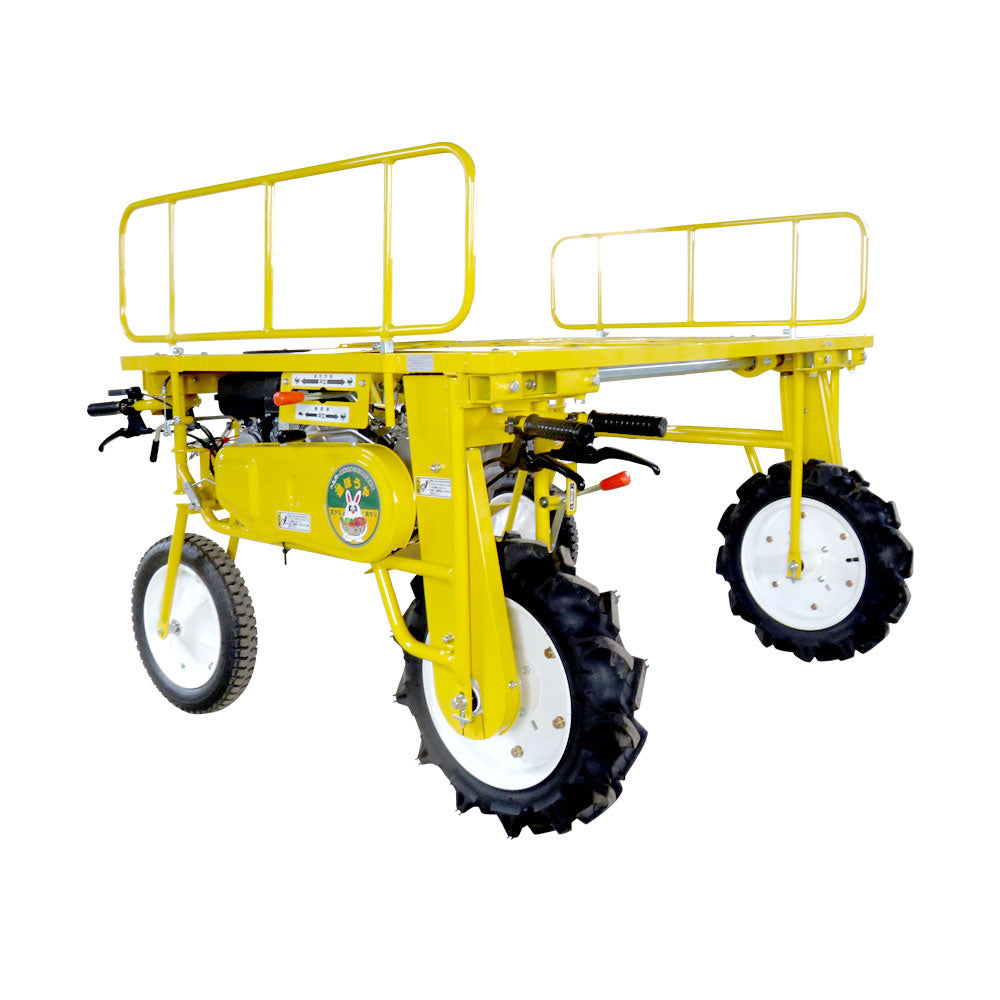

This is a low loading type carrier that is easy to load.
It is a transport vehicle that can be handled freely with simple operation.
If the wheel track is reduced to the minimum, it can be loaded on a small truck.

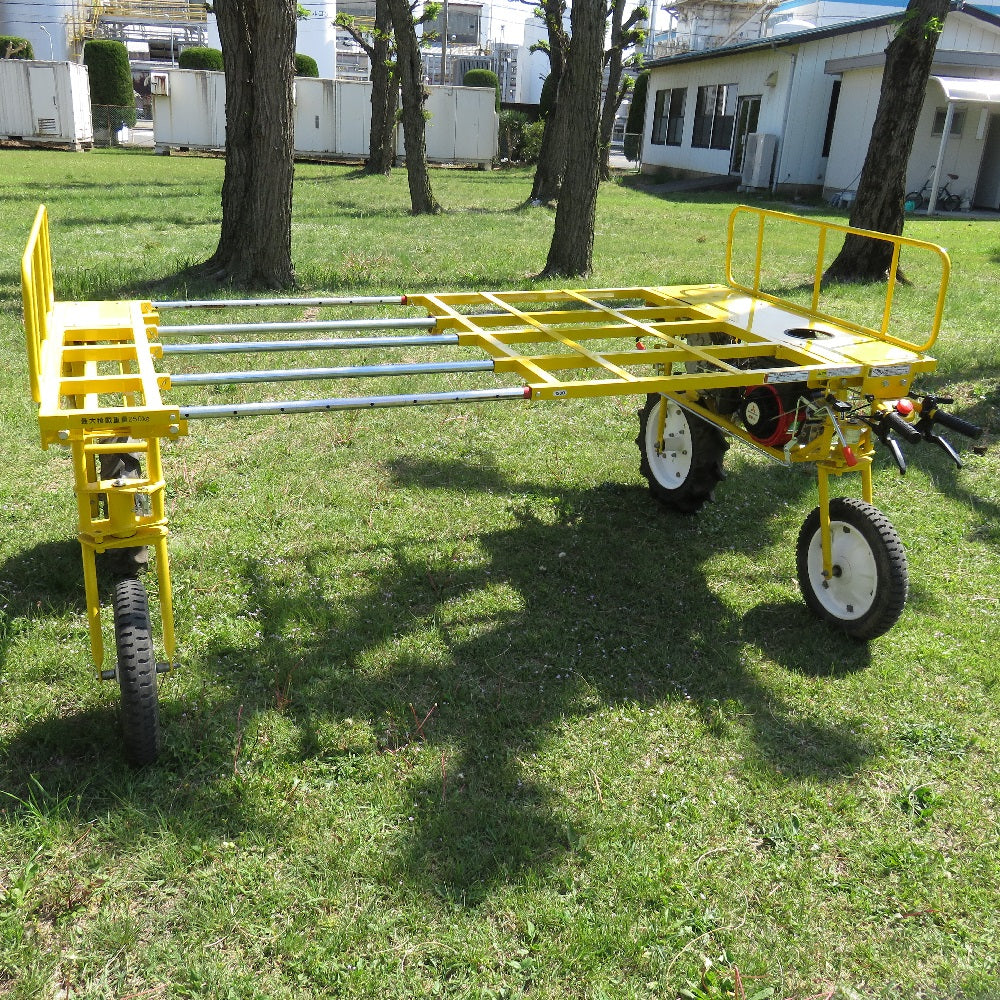

The tread can be adjusted in 100mm increments from 1200 to 2000mm.
The shift lever can be switched regardless of the front and back of the vehicle.
VIDEOS
FEATURES

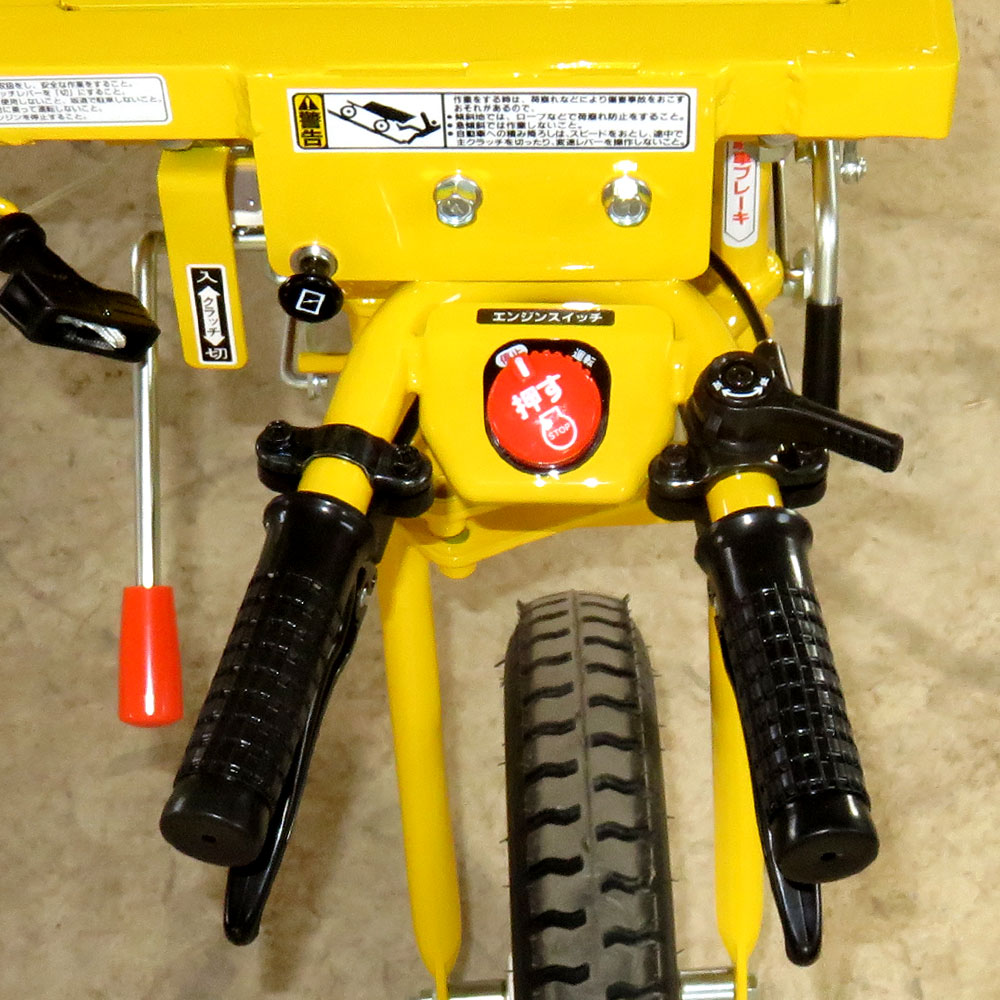

- Equipped with one main clutch at the front and back, you can freely start and stop. The forward/reverse switching lever is also easy to operate.
- Equipped with one front and one side clutch for turning assistance. Combined with the main clutch equipped with one front and one back, the usability is different.
- If the wheel track is reduced to the minimum, it can be easily moved on a small truck.
- In order not to damage the loaded crops, we have adopted a tire drive that does not rattle even when traveling on paved roads.
SPECIFICATIONS
| Model | KYU-S-3 | |
|---|---|---|
| Dimensions | Length x Width x Height (mm) | 1,540 x 1,550 (2,350) x 850 (clearance 750) |
| Width (mm) to Center | 1200 to 2000 | |
| Machine weight (kg) | 160 | |
| Engine | Model | GB131 |
| Type | Air-cooled 4-cycle inclined gasoline engine (OHV) | |
| Displacement (L{cc}) | 0.126 (126) | |
| Maximum output (kW{PS}) | 3.0 (4.2) | |
| Fuel type | Unleaded gasoline for automobiles | |
| Fuel tank (L) | 2.5 | |
| Starting method | Recoil starter | |
| Driving | Number of gears | 2 forward gears, 2 backward gears (including sub-transmission) |
| Main clutch | Belt tension | |
| Wheel diameter/Width (mm) | Drive wheel 400-12 Caster 300-10 | |
| Maximum load (kg) | 250 | |
| Amount of oil | ||
| Engine SAE30# (L) | 0.6 | |
| Mission case SAE90(80)#(L) | 1.5 | |
